So, after finally getting chance to take a look at my leaky front master cylinder, I discovered a couple of things.

1. It's a bit leakier than I thought
2. Some of the small phillips head screws are actually made of soft cheese.

I'm pretty sure I need to order of one these...

Master Cylinder Repair Kit BMW K1100 R1100 RT GS R BMW No:32722332037 | eBay

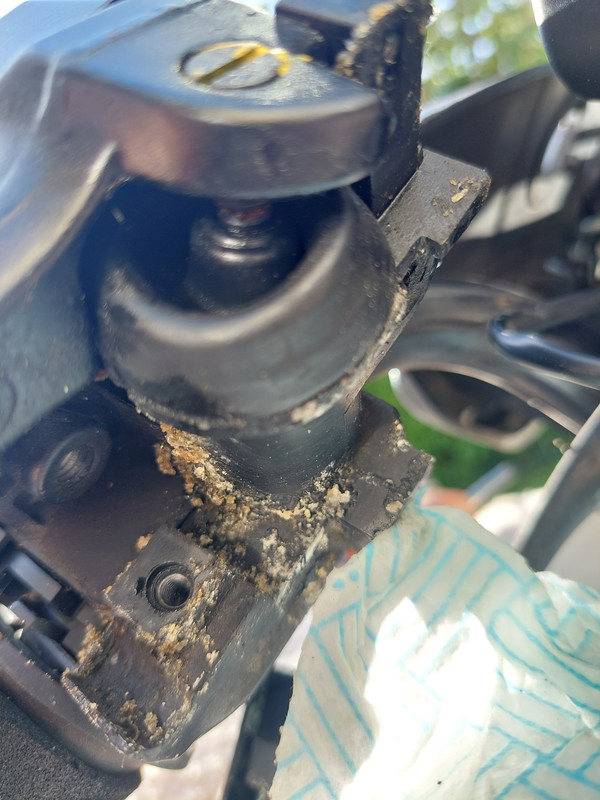

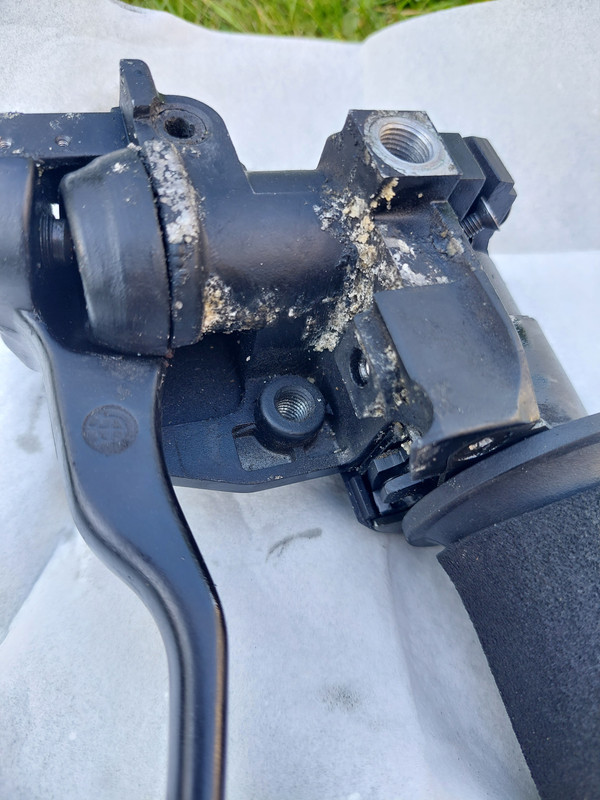

Here's how it's looking so far...

Repairing leaking front M/C (16v) 20230909-164222


Repairing leaking front M/C (16v) 20230909-165916


My Clymer manual (page 638) tells me to 'Loosen and remove the brake lever mounting pin'.

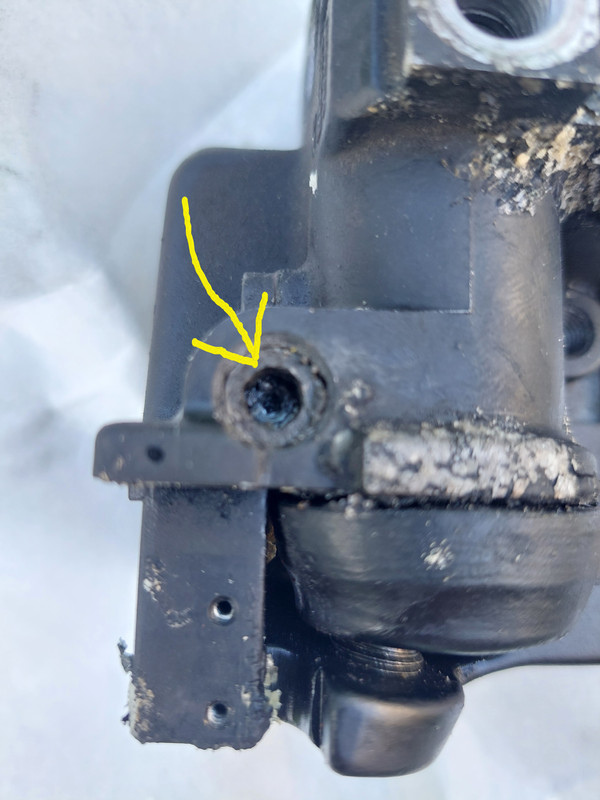

How (what tool) do I remove this pin?...


Repairing leaking front M/C (16v) 20230909-165931


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


Dai

Dai
Life time member
Life time member
Interesting. That should be a slot head, not (what appears to be) a torx head. Give it a good scrub and take another look with a torch. As for the screws: to really screw (!! Twisted Evil ) things up, there are three X-shaped heads - crosshead, Phillips and JIS (Japanese Industrial Standard). I haven't had a standard m/c on either of my bikes for a while now, but I'm guessing you may have been trying to use a Phillips screwdriver in a crosshead screw (or the other way round) so the screwdriver kept camming out (spelling is correct! Very Happy ).


__________________________________________________
1983 K100 naked upgraded to K100LT spec after spending time as an RS and an RT
1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


Bonzo

Bonzo
Life time member
Life time member
Hi Dai,

Yes, I was trying a phillips head driver (actually a rather wonderful King Dick 1 for 6) and thought I had a real good connection with the screw, alas it was seemingly welded in and so the head is now history  Repairing leaking front M/C (16v) 61740

And the mounting pin looks right against the Clymer book...

Repairing leaking front M/C (16v) 20230909-185043

..but I haven't got anything that will marry up with that either   scratch

All in all, pretty poor day regarding getting the brake sorted  Repairing leaking front M/C (16v) 652573


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


Dai

Dai
Life time member
Life time member
That diagram still looks like a Torx head, but I would go with an allen bolt theory - at least, until your torch proves me wrong tomorrow!


__________________________________________________
1983 K100 naked upgraded to K100LT spec after spending time as an RS and an RT
1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


Laitch

Laitch
Life time member
Life time member
According to Anton Largiader, we're looking at a 5mm hexhead socket screw. He explains the removal procedure at this link in Step 6. He's working on an R1100 but the pivot pin part number is the same on both the K1100 and the R1100. Don't neglect using penetrant and heat.



Bonzo

Bonzo
Life time member
Life time member
Laitch wrote:According to Anton Largiader, we're looking at a 5mm hexhead socket screw. He explains the removal procedure at this link in Step 6. He's working on an R1100 but the pivot pin part number is the same on both the K1100 and the R1100. Don't neglect using penetrant and heat.

Ooh, great link Laitch, cheers  Repairing leaking front M/C (16v) 112350


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


duck

duck
Life time member
Life time member
5mm Allen. Even when it gets to the end of the threads it is still difficult to remove which Anton alludes to in his write-up.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


Point-Seven-five

Point-Seven-five
Life time member
Life time member
I wouldn't be in the least surprised if BMW put that damn red Loctite on that screw.  I know I had a heck of a time getting mine out.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


duck

duck
Life time member
Life time member
Point-Seven-five wrote:I wouldn't be in the least surprised if BMW put that damn red Loctite on that screw.  I know I had a heck of a time getting mine out.

Blue
Repairing leaking front M/C (16v) 32722310753_3_B


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


10Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sat Sep 09, 2023 9:14 pm

duck

duck
Life time member
Life time member
A mechanic's trick for unscrewing a stripped Allen head is to pound a Torx bit into it.


__________________________________________________
Current stable:
86 Custom K100 (standard fairing, K75 Belly pan, Ceramic chromed engine covers, paralever)
K75 Frankenbrick (Paralever, K11 front end, hybrid ABS, K1100RS fairing, radial tires)
86 K75C Turbo w/ paralever
94 K1100RS
93 K1100LT
91 K1
93 K75S (K11 front end)
91 K75S (K1 front end)
14 Yamaha WR250R
98 Taxi Cab K1200RS
14 K1600GT
http://www.ClassicKBikes.com


11Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 7:57 am

Bonzo

Bonzo
Life time member
Life time member
Thanks Laitch & Duck. 5mm it indeed was, and it came out without issue -for once  Repairing leaking front M/C (16v) 652573


Repairing leaking front M/C (16v) 20230910-114948


More to come.


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


12Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 8:49 am

Bonzo

Bonzo
Life time member
Life time member
Yep, we're in a better place today - many thanks to the link to Anton's instructions.

With a little compressed air, the piston popped out...

Repairing leaking front M/C (16v) 20230910-123029


..and a clean up got ride of the dried up debri ready for the new boot...


Repairing leaking front M/C (16v) 20230910-123036


Anton mentions that the rebuild kit: 32 72 2 332 037 doesn't come with the boot, but looking at the Motorworks eBay link in my first post suggests it does  Repairing leaking front M/C (16v) 112350


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


13Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 10:56 am

Point-Seven-five

Point-Seven-five
Life time member
Life time member
Judging from the way the exterior of the master cylinder looks, I would guess that a rebuild kit is going to be a waste of money, and will only make the final cost for making the front brakes work that much higher.

No need to ask me how I know this,  I was down this road before...

...Twice.

K75 rear master cylinder and a K100 front master cylinder.  They are made out of the shittiest pot metal I have ever seen.  The new front master cylinder I installed appears to have an anodized bore that might help prevent corrosion.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


14Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 12:02 pm

Laitch

Laitch
Life time member
Life time member
Point-Seven-five wrote:They are made out of the shittiest pot metal I have ever seen.
You should have see the pot metal of the S&W Model 3 topbreak cap gun I had in fourth grade. I didn't realize it then but the quality was a ripoff. Sad  It fell out of its holster on a wild downhill bicycle run while I was chasing bandits and broke up on the pavement. A melee ensued, followed by lemonade.



15Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 12:29 pm

Bonzo

Bonzo
Life time member
Life time member
Point-Seven-five wrote:Judging from the way the exterior of the master cylinder looks, I would guess that a rebuild kit is going to be a waste of money, and will only make the final cost for making the front brakes work that much higher.

No need to ask me how I know this,  I was down this road before...

...Twice.

K75 rear master cylinder and a K100 front master cylinder.  They are made out of the shittiest pot metal I have ever seen.  The new front master cylinder I installed appears to have an anodized bore that might help prevent corrosion.

The bore has actually cleaned up ok, but I appreciate the benefit of your experience.

Which new front master cylinder did you replace it with?


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


16Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 1:42 pm

Point-Seven-five

Point-Seven-five
Life time member
Life time member
I think the original master cylinders were made from recycled 1950's vintage Made in Japan cap pistols alloyed with old beer cans.  Laitch's old S&W may now be stopping someone's brick.

I got my replacement Master cylinder from EuroMotoElctrics in Denver.  I'm sure that the big aftermarket guys in the U.K. will have what you need.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


17Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 2:44 pm

Bonzo

Bonzo
Life time member
Life time member
Point-Seven-five wrote:I got my replacement Master cylinder from EuroMotoElctrics in Denver.  I'm sure that the big aftermarket guys in the U.K. will have what you need.

I wasn't sure if you meant you opted for a completely different aftermarket m/c or one of the 'originals' like this ...

Master cylinder front: Brake master cylinder (james-sherlock.co.uk)


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


18Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 5:34 pm

Point-Seven-five

Point-Seven-five
Life time member
Life time member
For the front I wanted something that was compatible with the throttle and the combination switch so I opted for the OEM replacement.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


19Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Sun Sep 10, 2023 6:48 pm

Dai

Dai
Life time member
Life time member
There's no aftermarket m/c unless you're willing to throw away all of the OEM stuff, fit something Japanese that's suitable and redo part of the wiring loom. You also need to change the indicator relay and make a couple of new cables (throttle, clutch and fast idle). Okay, three cables.

Yes, I've done it Very Happy . See here: https://www.k100-forum.com/t10150-wiring-in-non-bmw-handlebar-switches. In addition to what I have written there, there is no reason why you can't use (say) left and right switches from pretty much any Japanese bike or any of the new Brit bikes. If you peruse ebay carefully you'll find many of the l/h switches have a built-in fast-idle lever. Currently Low Flying Brick has a Suzuki SV650 l/h switch with a Bandit 600 clutch lever and a Triump Sprint r/h switch with a m/c that came from a Guzzi California 1100. The majority of the world's motorcycles are fitted with switches made by Domino in Italy; the casings and the switch shapes might be slightly different fron m/fer to m/fer, but once you take the buggers apart they are the same on the inside.

[Edit] I'll give you another reason why you may not want to do this. Most Domino switches (and Chinese knock-offs thereof) are held in place with a peg that locates into a hole in the handlebars, so you'd need to decide the switch block angle and then drill the bars to suit. You could just remove the peg, but then you'd need to put a single turn of insulating tape around the bars to take up the difference between the 22mm BMW bars and the 7/8" that everyone else uses.

If you want to change the handlebars for non-BMW, it can be done with a bit of cheating. Buy a pair of handlebar risers and file/sand 0.22mm off the lower side of the riser until it fits the existing OEM risers. Now fit the handlebars of your choice.


__________________________________________________
1983 K100 naked upgraded to K100LT spec after spending time as an RS and an RT
1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


20Back to top Go down   Repairing leaking front M/C (16v) Empty Re: Repairing leaking front M/C (16v) Mon Sep 11, 2023 8:30 am

Bonzo

Bonzo
Life time member
Life time member
Cheers for that Dai.

I'll give the rebuild kit a go at £45, if thats a no go I'll be tempted to call it a day.


__________________________________________________
1990 K100RS 4V (VIN# 6406682)
2017 R1200RS SE Sport


Sponsored content
