Hello!

On my bike I don't have a Hazard Lights and I would like to connect one.
I found one on eBay, see picture.

How and especially where do I connect, is there a allredy a plug?

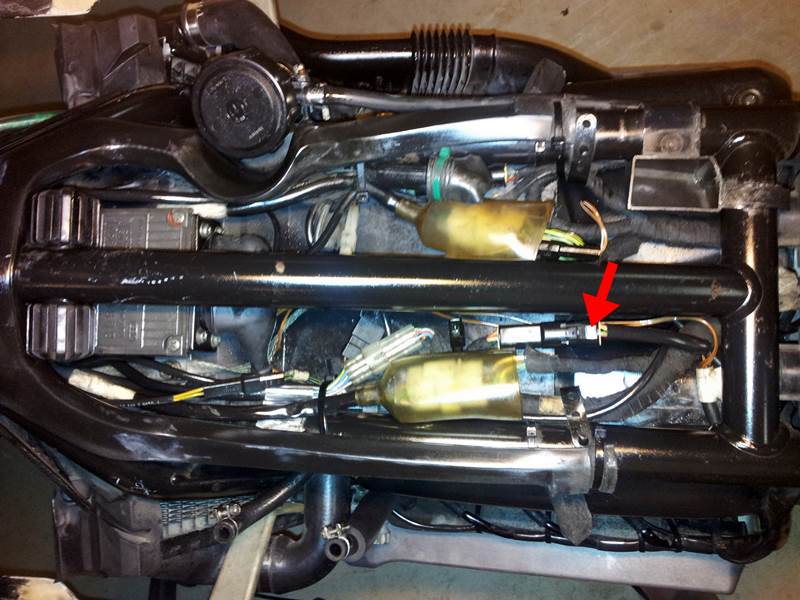

The pictures from under the tank are not from me, maybe there is a plug that is meant to use for the warning flashing light.

Cheers espresso

Hazard Lights | how to connect <a href=Hazard Lights | how to connect Image13" />
Hazard Lights | how to connect <a href=Hazard Lights | how to connect Image14" />

Hazard Lights | how to connect DqkE4

Hazard Lights | how to connect Fi_har11

Thanks for your advise

Cheers



Last edited by Espresso on Sun Nov 29, 2015 4:30 am; edited 1 time in total


__________________________________________________
Only a few activities make me experience my senses in a way motorcycle riding does, it is like swimming in the nude in a river.
K75 BA/1992 ABS, K75 BA/1991 noABS, Ducati, Mobylette M1/1973


2Back to top Go down   Hazard Lights | how to connect Empty Re: Hazard Lights | how to connect Sun Nov 29, 2015 4:08 am

indian036

indian036
Life time member
Life time member
Correct expression is Hazard Lights or Hazard Flashers. Mine already had them installed and working, so I haven't looked at wiring.

The experts here will give good advice as usual, I'm sure.

Bill


__________________________________________________
1985 K100RT  VIN 0028991  My original Very Happy ROB the Red Old Bike   (Historic rego)
1985 K100RT  VIN 0029036  BOB the Blue Old Bike  (Historic rego)
1990 K100LT  VIN 0190452  Work in progress
1984 K100RT  VIN 0023022  Work needing lots of progress

1986 K100RT  VIN 0090542  Work needing lots and lots of progress
1993 K1100LT  VIN 0183046  Work in progress
1993 K75S  VIN 0213045  Tom the Triple (now on Historic rego too.)


3Back to top Go down   Hazard Lights | how to connect Empty Re: Hazard Lights | how to connect Sun Nov 29, 2015 4:31 am

Chocolate

Chocolate
Life time member
Life time member
# thanks Bill, corrected that :-)

Cheers


__________________________________________________
Only a few activities make me experience my senses in a way motorcycle riding does, it is like swimming in the nude in a river.
K75 BA/1992 ABS, K75 BA/1991 noABS, Ducati, Mobylette M1/1973


4Back to top Go down   Hazard Lights | how to connect Empty Re: Hazard Lights | how to connect Sun Nov 29, 2015 5:33 am

Holister

Holister
Life time member
Life time member
The switch connects into the harness under the tank on the left. See diagram below which is from the trouble shooting page linked off the Portal tab.
See connector #12
The wire colours are...
Brown
Yellow/Violet
Blue/White
Hazard Lights | how to connect Under-tank-wiring


__________________________________________________

1989 K100RT     VIN  0097367 (naked)
1996 K1100RS   VIN  0451808
 Hazard Lights | how to connect Austra12    Fuel:  95 Octane
Engine Oil: Nulon Full Synthetic 15W50
Gear Box Oil:  Nulon Synthetic 75W90


5Back to top Go down   Hazard Lights | how to connect Empty Re: Hazard Lights | how to connect Sun Nov 29, 2015 5:53 am

Chocolate

Chocolate
Life time member
Life time member
# thanks Kaptain, so there must be a unused plug (number 12) and I just have to plug my cable and that's it right?

Cheers


__________________________________________________
Only a few activities make me experience my senses in a way motorcycle riding does, it is like swimming in the nude in a river.
K75 BA/1992 ABS, K75 BA/1991 noABS, Ducati, Mobylette M1/1973


6Back to top Go down   Hazard Lights | how to connect Empty Re: Hazard Lights | how to connect Sun Nov 29, 2015 7:59 am

Holister

Holister
Life time member
Life time member
Pretty much that's it (unless there's some K75 anomaly but I doubt it).
There may already be a connector plugged in from a previous switch that may have been surgically removed 🤡 ... Just swap it for the one you have. The hazard function is controlled by the flasher controller which is the one bottom left in the electrical box in your photo.
