Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. Tue Jul 24, 2012 4:00 am
Albyalbatross1
![Albyalbatross1](https://2img.net/u/4211/29/48/93/avatars/686-60.jpg)
Life time member
![Life time member Life time member](https://i.servimg.com/u/f80/11/71/56/74/bmw-5s10.gif)
I finally got tired of my starter engaging after two or three tries...So I Cleaned it! Here is what i did for those who are interested.
First do THIS!!!
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 1this_12](https://i.servimg.com/u/f45/15/55/43/15/1this_12.jpg)
I removed my intermediate housing or leave it on for this next step. Loosen off the bolt hoding the alternator drive. you will need to wedge the drive to undo the bolt. I ended up using a socket as the wood kept crushing.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 2_rele10](https://i.servimg.com/u/f45/15/55/43/15/2_rele10.jpg)
Then using a bearing puller I had ground the claws down on I pulled the drive up a bit at a time until it would just pull out.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 3_bear10](https://i.servimg.com/u/f45/15/55/43/15/3_bear10.jpg)
This is where you can remove your auxiliary housing if you left it on the engine and remove the freewheel and counter shaft.
Once the Freewheel was on the bench i could see the residue from 30 yrs oil
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 4_resi10](https://i.servimg.com/u/f45/15/55/43/15/4_resi10.jpg)
Removed the gear wheel from the clutch and auxillary shaft they just gently pull apart. Then remove the 6 bolts holding the covering plate over the gear wheel. Then set the gear wheel on the bench and Gently pries the sprag clutch out.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 6_out_10](https://i.servimg.com/u/f45/15/55/43/15/6_out_10.jpg)
Here is my gummed up sprag. Be very care full not to dislodge any of the lobes. They are held in by a very small fine spring.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 8_gumm10](https://i.servimg.com/u/f45/15/55/43/15/8_gumm10.jpg)
The Very Fine Springs
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 10_lil10](https://i.servimg.com/u/f45/15/55/43/15/10_lil10.jpg)
Now put it in a small tray of solvent to soak for a bit. I should have placed it back in the ring to clean it as I managed to knock some of the lobes out. Use a toothbrush or whatever yu fancy. Once its all clean start to put it back together.
Put the ring on auxillary shaft, spacer ring in next followed by some oil and the sprag clutch. be sure its the right way around!
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 16_spa10](https://i.servimg.com/u/f45/15/55/43/15/16_spa10.jpg)
Then some more oil and then the cover plate and bolts. Torque up to spec..
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 17_tor10](https://i.servimg.com/u/f45/15/55/43/15/17_tor10.jpg)

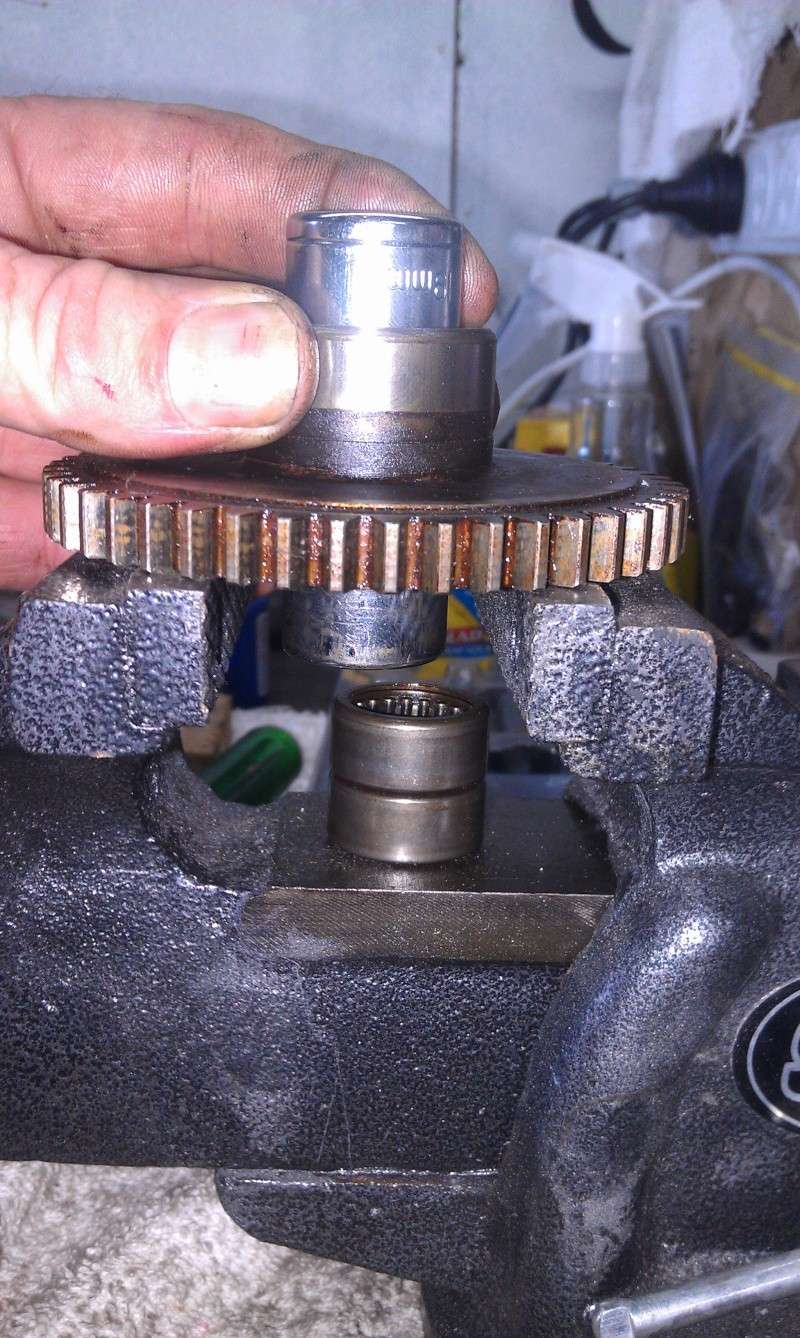

Next I did the bearings in the Gear Wheel. These came out easily enough with a tube socket as a drift and with some heat..
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 5_out_10](https://i.servimg.com/u/f45/15/55/43/15/5_out_10.jpg)
Time for Coffee!!!!!!! Cheeky Cafe Staff!!
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 12_che10](https://i.servimg.com/u/f45/15/55/43/15/12_che10.jpg)
I used a length of threaded rod I had lying about to pull the new bearings in.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 14_bea10](https://i.servimg.com/u/f45/15/55/43/15/14_bea10.jpg)
New Bearings in place. be sure to take them in far enough.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 15_new10](https://i.servimg.com/u/f45/15/55/43/15/15_new10.jpg)
Now oil the sprag clutch through the holes in the ring and oil the Auxilary shaft and the gear wheel bearings.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 18_oil10](https://i.servimg.com/u/f45/15/55/43/15/18_oil10.jpg)
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 19_oil10](https://i.servimg.com/u/f45/15/55/43/15/19_oil10.jpg)
Then gently twist the auxiliary shaft into the sprag clutch turning the same way as the lobes point and it should just slide right back in.
I then did a naughty thing and cleaned the threads up.(might want to do this first! then clean things up)
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 20_thr10](https://i.servimg.com/u/f45/15/55/43/15/20_thr10.jpg)
Thats it for this bit. Next the bearing and seal for the intermediate housing and the bearing in the engine block for the auxiliary shaft.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 21_all10](https://i.servimg.com/u/f45/15/55/43/15/21_all10.jpg)
To replace the bearing in the block for the auxiliary shaft you will need a blind bearing puller. (good sets for 30 bucks in aus)This is how it comes out. I then made a drift up to drive the new one home from a large bolt i linished down to size.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 29_out10](https://i.servimg.com/u/f45/15/55/43/15/29_out10.jpg)
Next I replaced the bearing /seal in the Intermediate housing. It was easy to remove if you follow the instructions in your haynes manual.
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 22_new10](https://i.servimg.com/u/f45/15/55/43/15/22_new10.jpg)
Bearing
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 23_new10](https://i.servimg.com/u/f45/15/55/43/15/23_new10.jpg)
Torque/Loctite
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 24_tor10](https://i.servimg.com/u/f45/15/55/43/15/24_tor10.jpg)
Put it all back together
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 25_sea10](https://i.servimg.com/u/f45/15/55/43/15/25_sea10.jpg)
Torque the drive bolt up...
![Sprag Clutch & Cleaning the Sprag clutch and bearing replacement. 26_tor10](https://i.servimg.com/u/f45/15/55/43/15/26_tor10.jpg)
All done. Do not forget to put the counter shaft in before you torque things up
This solved my problem of a spinning sprag clutch. I changed the bearings because I was in there. I am still on the trail of a small rattle !!!!!
