As I move forward with the service and maintenance schedule on my recently purchased 40 year old K100C I looked pensively at the water pump cover and wondered what nightmare awaited behind it. Has the impeller even been upgraded? If I have to pull the shaft will it be pitted beyond use? If I leave it alone is a pump failure impending on the first good ride? So off with the cover it was. No, the impeller upgrade had not been done, so removing the pump it was.

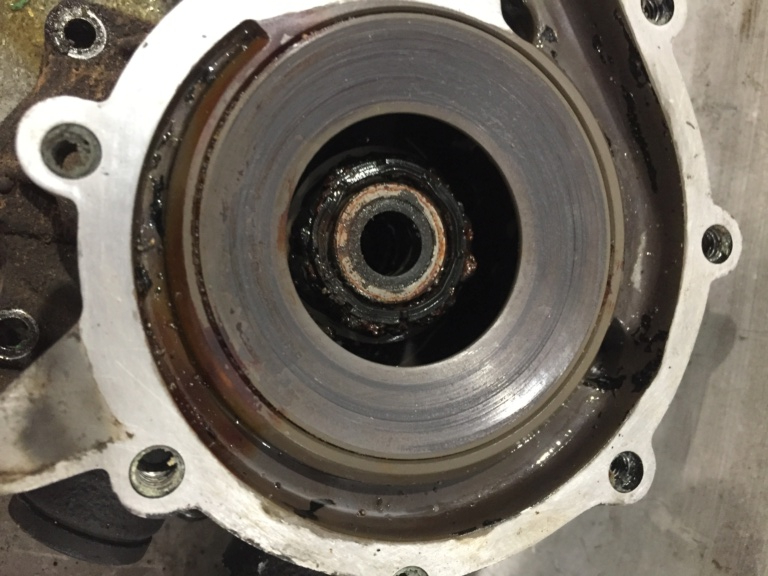

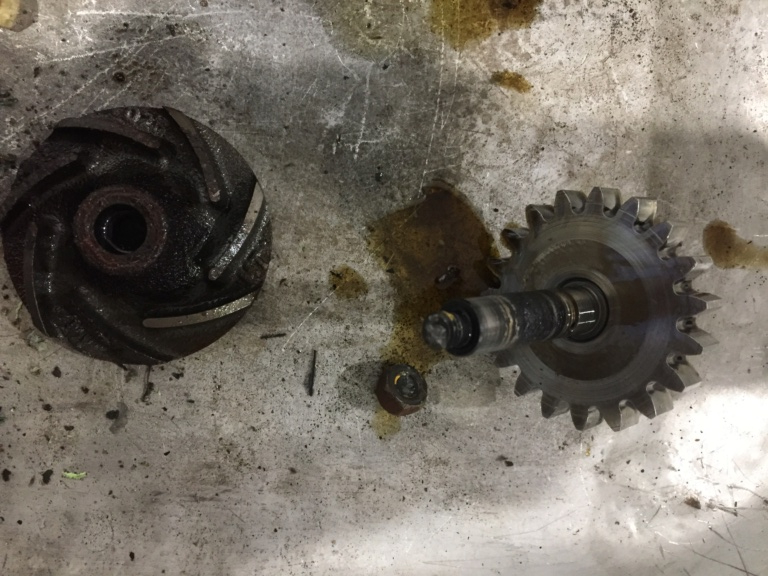

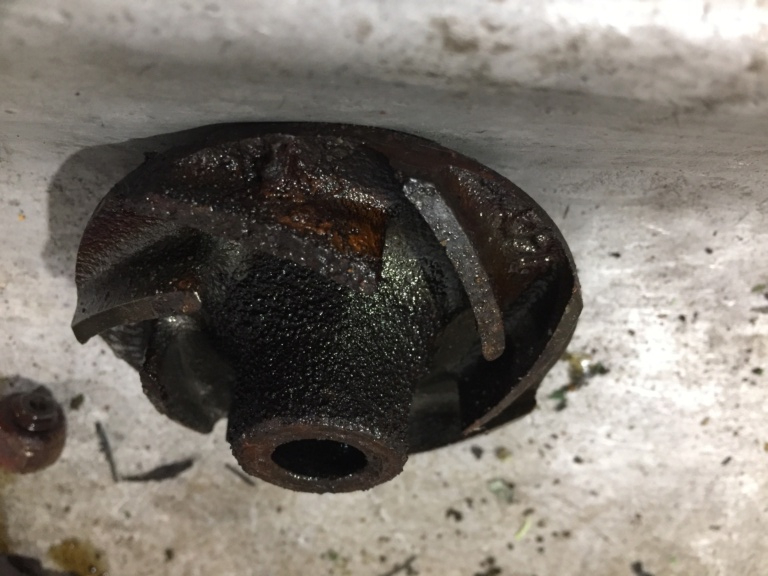

Having done this job a number of times I locked the shaft with an Allen key and prepared to go into battle with the rusty nut, only to have it fall off with the tip of the shaft snapped off and still inside the nut. The shaft was very badly corroded where it passes through the seal which is not surprising given its age but it’s toast anyway so a new one in needed. The pictures tell the story however, with the condition of the seal well past it’s use by date, and the surface of the impeller blades so rusty they have lightly scoured the face of the pump but I’m thinking a polish with some 0000 wire wool and it should be fine though. Any thoughts on this?

Behind the cover of a 40year old water pump  Img_9312
Behind the cover of a 40year old water pump  Img_9310
Behind the cover of a 40year old water pump  Img_9311


__________________________________________________
Current rides:
2020 R1250RS. Metallic black with all the fruit
1983 K100C. Red. Krauzer fairing.
1984 K100RS. Madison silver.
2002 K1200RS. Owned from new. Pacific Blue, Ohlins, Speiglers, Fiamms, HID. 186,000km SOLD Crying or Very sad
1991 K1. Schwartz metallic black, 18 month frame off restoration. 74,000km SOLD Crying or Very sad
1987 K100RS Style. Black, Ohlins, Race Tech springs, Braided lines. Fully restored. 53,000 miles. SOLD Crying or Very sad
The family history:
1951 AJS 500 single - my Dads ride
1953 Triumph Terrier - my Mum's ride
1916 Triumph Type H, Battle of the Somme, France WW1 - my Grandads ride


Point-Seven-five

Point-Seven-five
Life time member
Life time member
Wow!  Somebody used well water in the cooling system and didn't bother changing the coolant very often.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


Dai

Dai
Life time member
Life time member
If you think that's bad, the Mk.1 impeller I took off LFB was pretty much a solid lump of rust. Wish I kept it but....

Change the impeller for the later (Mk.2) version. It's a different design of shaft (stronger), plus the impeller part is a lot lighter and according to Motorworks, flows a lot more coolant.


__________________________________________________
1983 K100 naked upgraded to K100LT spec after spending time as an RS and an RT
1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


KiwiK100

KiwiK100
Gold member
Gold member
If I can get some clear coat to stick to the rust, I’m tempted to use it as coffee table art although I’d likely be shut down by my better half on that idea! Dai, the reason for the cover removal in the first place was to see if the impeller upgrade had been done.


__________________________________________________
Current rides:
2020 R1250RS. Metallic black with all the fruit
1983 K100C. Red. Krauzer fairing.
1984 K100RS. Madison silver.
2002 K1200RS. Owned from new. Pacific Blue, Ohlins, Speiglers, Fiamms, HID. 186,000km SOLD Crying or Very sad
1991 K1. Schwartz metallic black, 18 month frame off restoration. 74,000km SOLD Crying or Very sad
1987 K100RS Style. Black, Ohlins, Race Tech springs, Braided lines. Fully restored. 53,000 miles. SOLD Crying or Very sad
The family history:
1951 AJS 500 single - my Dads ride
1953 Triumph Terrier - my Mum's ride
1916 Triumph Type H, Battle of the Somme, France WW1 - my Grandads ride


Dai

Dai
Life time member
Life time member
Behind the cover of a 40year old water pump  112350


__________________________________________________
1983 K100 naked upgraded to K100LT spec after spending time as an RS and an RT
1987 K100RT
Others...
1978 Moto Guzzi 850-T3, 1979 Moto Guzzi 850-T3 California,1993 Moto Guzzi 1100ie California
2020 Royal Enfield Bullet 500


firstle

firstle
Life time member
Life time member
i have seen this but only on bikes/cars which have been left standing for some years (british cars)  , replace it and refill with the correct water mix and use the bike .
