1Back to top Go down   What am I missing? Empty What am I missing? Thu Feb 23, 2017 9:38 am

genewilliamsgene

genewilliamsgene
active member
active member

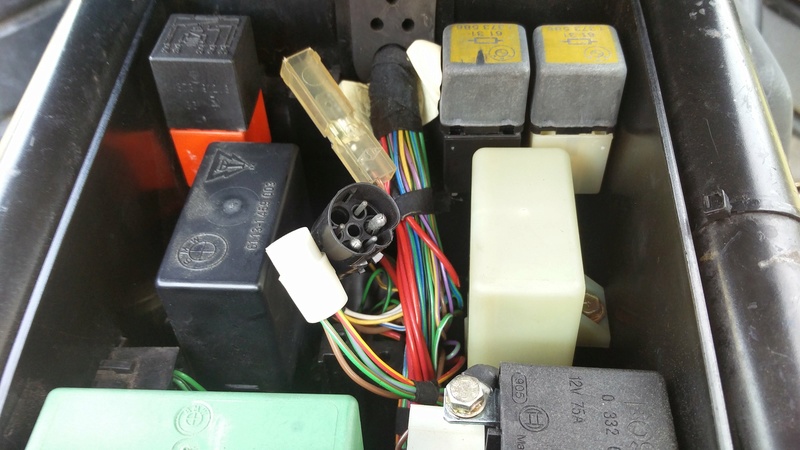

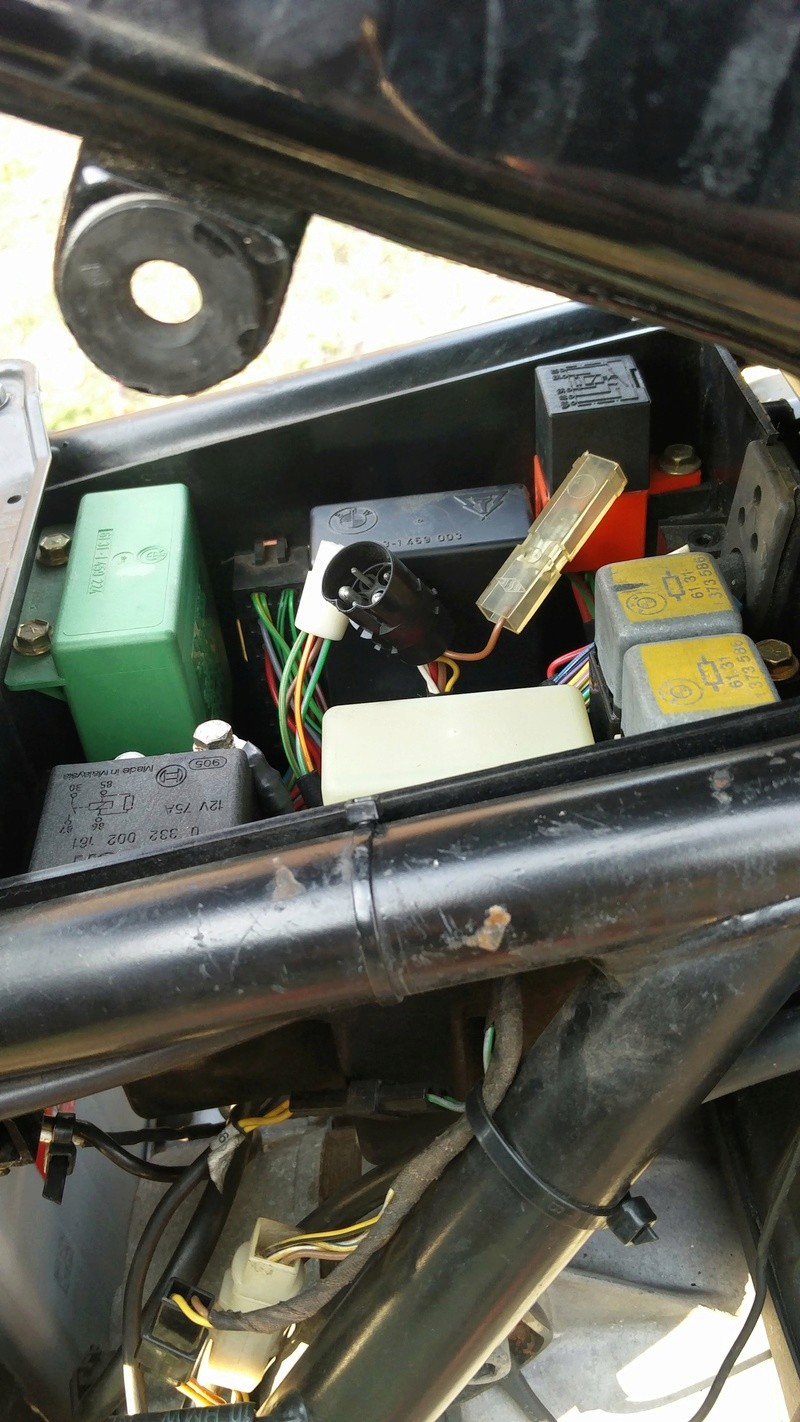

In a tale as old as time I was working on something else when I noticed a few unplugged connectors in the box under my tank...

What am I missing? Img_2012
What am I missing? Img_2011

I have a climers manual and have looked through it but I am at a loss. I have no idea what these connectors should plug into.

So what am I missing gentlemen? where should these things plug into?

Thanks,
Gene



2Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 9:57 am

Point-Seven-five

Point-Seven-five
Life time member
Life time member
Those are connectors for dealer installed options like alarms, radios, sirens, and lights.


__________________________________________________
Present: 1991 K100RS "Moby Brick Too"

Past:
1994 K75RT "Ilsa, She Wolf of the SS"
1988 K100RS SE "Special Ed"
1994 K75S "Cheetos"
1992 K100RS "Moby Brick" R.I.P.
1982 Honda FT500
1979 Honda XR185
1977 Honda XL125
1974 Honda XL125
1972 OSSA Pioneer 250
1968 Kawasaki 175


3Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 9:59 am

genewilliamsgene

genewilliamsgene
active member
active member
Oh! OK nice, I was getting worried! Thank you so much!



4Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 10:06 am

charlie99

charlie99
VIP
VIP
looks like nothing is missing ... don't fret about it
one of the multi pin connectors is for additional accessories almost always unterminated in just about all k bikes


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


5Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 10:15 am

Chocolate

Chocolate
Life time member
Life time member

Hey!
The white cable is used for BMW K75 - 1100
For a secure connection of extras like navigation, charge mobiles, extra light etc.
In the relaybox it was designed for alarm, 4 connections with earth, permanent + over ignition.
 8 A (96W at 12V) fuse 5 and 7 (15 A)

Cheers

A german man is selling a cable for this connection



What am I missing? Img_2714


__________________________________________________
Only a few activities make me experience my senses in a way motorcycle riding does, it is like swimming in the nude in a river.
K75 BA/1992 ABS, K75 BA/1991 noABS, Ducati, Mobylette M1/1973


6Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 10:54 am

BobT

BobT
Life time member
Life time member
"

 8 A (96W at 12V)

 "
That is what you call power, the alternator on my DUcati 250 produces 40w at max chat!



7Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 11:22 am

92KK 84WW Olaf

avatar
Life time member
Life time member
That won't run much of a starter......

Or does the Ducati have an older Kalorie type starter?


__________________________________________________
1992 K100LT 0193214 Bertha Blue 101,000 miles
1984 K100RT 0022575 Brutus Baja Red 578 bought 36,000 now 89,150 miles
1997 K1100LT 0188024 Wotan Mystic Red 689 58,645 now 106,950 miles Deceased.
1983 K100RS 0011157 Fricka 606 Alaska Blue 29,495 miles Damn K Pox Its a Bat outta Hell Now 58,200 miles.
1996 K1100LT 0233004 Lohengrin Mystic Red 38,000 miles currently 51,800 miles.
1983 K100RS 0004449 Odette R100 colours 58,000 miles. Sprint fairing now 63,390 miles

Past:
1968 Yamaha 80 YG1
1971 Yamaha 125 YAS-1
1968 Honda 125 SS
1970 Honda CD 175
1973 Honda CB500-4
Honda CX 500


8Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 12:08 pm

BobT

BobT
Life time member
Life time member
92KK 84WW Olaf wrote:That won't run much of a starter......

Or does the Ducati have an older Kalorie type starter?
You will be suggesting that it has indicators next!



9Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 1:16 pm

Born Again Eccentric

Born Again Eccentric
Life time member
Life time member

BobT wrote:"

 8 A (96W at 12V)

 "
That is what you call power, the alternator on my DUcati 250 produces 40w at max chat!

92KK 84WW OlafThat won't run much of a starter......

Or does the Ducati have an older Kalorie type starter?
Hmmm?????
How often does a alternator run a starter? Unless there is something seriously wrong, I think the starter is the precursor to the alternator. If the alternator is running, the starter has finished doing its job already. I suppose if you are jump starting another bike you could argue otherwise!Very Happy


__________________________________________________
What am I missing? Uk-log10 What am I missing? Sco-lo15
                              Paul  What am I missing? 905546712

"Heidi" K100LT 1991 (Grey) (VIN 0190172 Engine No. 104EB 2590 2213) - 5th owner. January 2014 (34,000 - 82,818 miles and counting....)
"Gretel" K100LT 1989 (Silver Grey) (VIN 0177324 Engine No. 104EA 2789 2211) - 4th+ owner. September 2015 (82,684 miles and counting....). Cat C Insurance write-off rebuild Feb 17
"Donor" K100LT 1990 (Red)  (VIN 0178091 Engine gone to Dai) - 6th & final owner (crash write-off now donor bike).   June 2012 (73,000 miles) to November 2013 (89,500 miles)


10Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 2:43 pm

92KK 84WW Olaf

avatar
Life time member
Life time member
Paul

That was a Kryptic comment.

The Ducati only has a kick start. Using an electric starter [if it had one] with a 40W alternator would mean quite a few hours running to get the battery back to full charge....

Be good if you can make it down to France in September too.....kind of looking like I might get to go about 1/2nd September get to St Leon late 3rd September and stay there a bit longer, until 20th September. Ferry arrives Roscoff 7.30am so would have all day to maybe do the full 700km as I know the road well.


__________________________________________________
1992 K100LT 0193214 Bertha Blue 101,000 miles
1984 K100RT 0022575 Brutus Baja Red 578 bought 36,000 now 89,150 miles
1997 K1100LT 0188024 Wotan Mystic Red 689 58,645 now 106,950 miles Deceased.
1983 K100RS 0011157 Fricka 606 Alaska Blue 29,495 miles Damn K Pox Its a Bat outta Hell Now 58,200 miles.
1996 K1100LT 0233004 Lohengrin Mystic Red 38,000 miles currently 51,800 miles.
1983 K100RS 0004449 Odette R100 colours 58,000 miles. Sprint fairing now 63,390 miles

Past:
1968 Yamaha 80 YG1
1971 Yamaha 125 YAS-1
1968 Honda 125 SS
1970 Honda CD 175
1973 Honda CB500-4
Honda CX 500


11Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 3:16 pm

charlie99

charlie99
VIP
VIP
BobT wrote:"

 8 A (96W at 12V)



 "
That is what you call power, the alternator on my DUcati 250 produces 40w at max chat!

yep they were absolutely abysmal ...and 6 volts at that ...mind you, you needed to get the fly wheel - rotor remagnetised after about 10 years if you wanted that good output bob .

a special low current ignition coil was used from memory as well ...mine blew up so resorted to a vw replacement  I could chose to ride at night ....only if I charged the battery before hand or less than 30 kilometers before she was dead .   those  scr for rectifiers were a good laugh ...


__________________________________________________
cheezy grin whilst riding, kinda bloke ....oh the joy !!!! ...... ( brick aviator )

'86 K100 RT..#0090401 ..."Gerty" ( Gertrude Von Clickandshift ) --------O%O
'86 k100 rs.. #######..  "Fred " (f(rame) red ) ( Fredrick leichtundschnell ) - -
bits and pieces from many kind friends across the k100 world ...with many thanks ..
1987 k100rs ########   "Red"  - (red sports rs TWB style )
1989 K100rt #009637   "Black Betty"  (naked rt ala Nigel , now sporting an rs main fairing )


12Back to top Go down   What am I missing? Empty Re: What am I missing? Thu Feb 23, 2017 6:34 pm

BobT

BobT
Life time member
Life time member
Mine has been converted to 12 volt and I have just fitted LED taillight and side light bulbs along with a mosfet regulator. I ride with side lights on as it is a legal requirement to have lights on here in France. I probably use no more than 5 watts with the brake on. The only other item that can consume any power is the headlight bulb and that is 35 watts. I have no intention of riding it at night as no one on my route would get any sleep due to the noise!
I should be out and about on it for the September meeting down here, it will feel safe when it is surrounded by visiting Ks.
